REEL LITE®- Ultra-Compact Reels for Fiber Optics
Revolutionary Improvement in Optical Fiber Length Management ! |
|
|
|
|

Reeling of fiber using a hand
spooling jig "Spool Holder" |
Fiber can be removed from
the reel in a neat fold |
Reel Lite will...
- Allow quick and easy taping-free spooling and storage of buffered/core fibers (f 0.25 – 0.9mm) and ribbon fibers.
- Facilitate removal of spooled fibers.
- Eliminate the burdensome work of extra fiber length management from device production and processing of terminals.
- Offer a variety of sizes and types that suit your needs (You can choose from 2 sizes and 3 types of products depending on the fiber length, material and specific environmental requirement such as frame resistance and lower gas emission.).
- Contribute also to the management of extra fiber length of FTTH lines.
Specifications
SPOOL-1-HG, a flame resistant model with lower gas emission, is recommended for mounting inside equipment and vapor deposition. SPOOL-1-ST is highly economical and suitable for terminal processing, packaging and shipping. SPOOL-2-ST is ideal for processing of core fibers and tape fibers as well as for the storage of extra length of fibers for FTTH cables. |

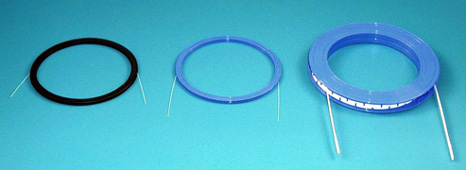

| SPOOL-1-HG |
SPOOL-1-ST |
SPOOL-2-ST |
| Product Name |
REEL LITE |
| Model |
SPOOL-1-HG |
SPOOL-1-ST |
SPOOL-2-ST |
| Color |
Black |
Blue |
Spooling
fiber length
(Maximum) |
Φ0.25mm Buffered fiber |
5m |
Approx. 150m |
| Φ0.9mm Core fiber |
- |
Approx. 10m |
| 12-core ribbon fiber |
- |
5m |
| External diameter of spool |
Approx. Φ72mm |
Approx. Φ89mm |
| Internal diameter of spool |
Approx. Φ64mm |
Approx. Φ64mm |
| Material of spool |
Special rubber A |
Special rubber B |
| Applicable temperature range |
-40 °C ~150 °C |
| Price |
$ ASK/50-pack |
$ ASK/50-pack |
$ ASK/50-pack |
|
|
|
Accessory Parts
|
Spool Holder
A jig for easy reeling of optical fiber. Sold in a case of 12. (See the photo on the right.)
* Compatible with SPOOL-1size only
Minimum order size : 1 x 12-pack
Price (incl. tax) : $ASK/12-pack |
 |
 |
|
Remover
This tool allows you to take the fiber off the Reel Lite in a wound bunch without scratching or damaging the fiber thanks to the special finish of the tip.
* Compatible with SPOOL-1& 2 sizes
Minimum order size : 1 x 12-pack
Price (incl. tax) : $ASK/12-pack |
 |
|
|
|
|
|
