Cartridge Series
In this series, a large variety of optical components are modularized as cassettes which enable easy application for various optical experiments and optical measurement.
The polarization state, attenuation volume, optical characteristics of wavelength can be adjusted easily without cumbersome optical axis adjustment.
This series is recommended to be used as a tool for various research and development.
* This series can be applied for near-infrared and visible regions in addition to communication wavelength bands.
Features
- Easy cassette exchange and replacement
- Low insertion loss
- Crystals, etc. of your request can be modularized as cassettes.
Brochure
New Line-Up
This cassette can be installed to a standard cartridge type coupling module, which enables confirmation of the optical transmission volume without reconnection of optical fibers.
( *Applied wavelength: 1470-1630 nm)
 |
Power Monitor Cassette
(PCC-15-M)
|
|
|
3-Stage Polarization Controller
(PCUA)
Polarizer Cassette
(PCC-*-p)
λ/4 Wave Plate Cassette
(PCC-*-Q)
λ/2 Wave Plate Cassette
(PCC-*-H)
Attenuator Cassette
(PCC-A)
Filter Cassette
(PCC-F)
Extinction Ratio Testing Module
(PCUE)
*Please refer here
|
|
Standard Configuration (Example: 1550 nm) |
|
|
3-Stage Polarization Controller (Model:PCUA) |
|
 |
|
Model: PCUA15-S/F (P/Q/H)
Model: PCUA15-D/F (P/Q/H) |
| Insertion Loss |
< 0.9 dB |
| Loss Fluctuation |
< 0.1 dB |
| Extinction Ratio |
> 35 dB (Polarizer Cassette) *1 |
| Return Loss |
> 50 dB |
| Optical Fiber |
SMF or DSF (Φ3-mm Cord) |
| Optical Connector |
FC/SPC or SC/SPC |
|
|
|
|
|
2-Stage Polarization Controller (Model:PCUB) |
|
 |
|
Model: PCUB15-S/F (Q/H)
Model: PCUB15-D/F (Q/H) |
| Insertion Loss |
< 0.7 dB |
| Loss Fluctuation |
< 0.1 dB |
| Return Loss |
> 50 dB |
| Optical Fiber |
SMF or DSF (Φ3-mm Cord) |
| Optical Connector |
FC/SPC or SC/SPC |
|
|
|
|
|
1-Stage Polarization Controller (Model:PCUC) |
|
 |
|
Model: PCUC15-S/F (P)
Model: PCUC15-D/F (P) |
| Insertion Loss |
< 0.7 dB |
| Loss Fluctuation |
< 0.1 dB |
| Extinction Ratio |
> 35 dB (Polarizer Cassette) *1 |
| Return Loss |
> 50 dB |
| Optical Fiber |
SMF or DSF (Φ3-mm Cord) |
| Optical Connector |
FC/SPC or SC/SPC |
|
|
|
|
*1) Extinction ratios may vary depending on the fiber condition. |
|
|
|
- Polarization Controller
|
|
Order format: |
|
|
- |
|
- |
|
/ |
|
( |
|
|
|
/ |
|
|
|
/ |
|
|
|
) |
|
1) Configuration example: |
λ:1550nm, Coupling module+ Polarizer +λ/4+ λ/2, Fiber:
SMF, Connector: FC/SPC |
|
Product: |
3-Stage Polarization Controller |
|
Order format example: |
PCUA-15-S / F(15P / 15Q / 15H) |
|
2) Configuration example: |
λ:1310nm, Coupling module + λ/4+ λ/2, Fiber: SMF,
Connector: SC/Angled PC |
|
Product: |
2-Stage Polarization Controller |
|
Order format example: |
PCUB-13-S / SA (13Q / 13H) |
|
1)Product: |
Polarizer, λ/4, λ/2 Cassette |
|
Order format example: |
PCC-15-P |
|
|
* Please specify (2 )Wavelength for Polarizer, λ/4 and λ/2
Waveplate |
|
2)Product: |
Attenuator Cassette, Wavelength Tunable Filter Cassette |
|
Order format example: |
PCC-A or F |
|
|
* *Please refer here |
|
3)Product: |
Power monitor Cassette |
|
Order format example: |
PCC-15-M |
|
|
*Applied wavelength is from 1470nm to 1630nm. |
|
| (1) Model |
PCUA: 3-Stage@PCUB: 2-Stage PCUC: 1-Stage
PCMA: Coupling module only
PCC: Cassette |
| (2) Wavelength |
15: 1550 nm 13: 1310 nm 10: 1060 nm 98: 980 nm
85: 850 nm 78: 780 nm 65: 650 nm 53: 530 nm 48: 480 nm |
| (3) Optical Fiber |
S: SMF D: DSF P: PMF M: MMF |
| (4) Optical Connector |
F: FC/SPC S: SC/SPC FA: FC/Angled PC SA: SC/Angled PC |
| (5) Cassette (PCC) |
P: Polarizer Q: λ/4 Wave plate H: λ/2 Wave plate
A: Attenuator F: Wavelength Tunable Filter M: Power Monitor |
|
*1. Light sources need to be supplied for manufacturing in the case of wavelength zones with no prepared light sources, such as λ = 650 nm, 530 nm, 480 nm, etc.
*2 Different fibre types can be specified for input and output.
*3 Any wavelength except 1550nm and 1310nm is subject to custom order.
|
|
Variations |
|
Various types of polarization controllers are successfully developed to
meet the needs of polarization control.
Non-cartridge type polarization controllers are also available. Please
refer to the following list for an introduction to some of the available
variations.
|
|
|
5-Stage Cartridge Type
Features
- Capability to contain up to 5 cartridges, instead of 3 which is the limit for the standard type
- Free cartridge combination as the standard type
- Customizable for any wavelength range to be applied
|
|
(Click To Enlarge) |
|
|
Positioner-Equipped Polarization Controller 1
Features
- Used for direct excitation of polarization-controlled light to an arbitrary fiber
- Adjustment is needed in the case of fiber attachment to an adapter part.
- Applicable adapters: SC FC MU and LC
- No tools are needed to exchange SC and FC types.
|
|
(Click To Enlarge) |
|
|

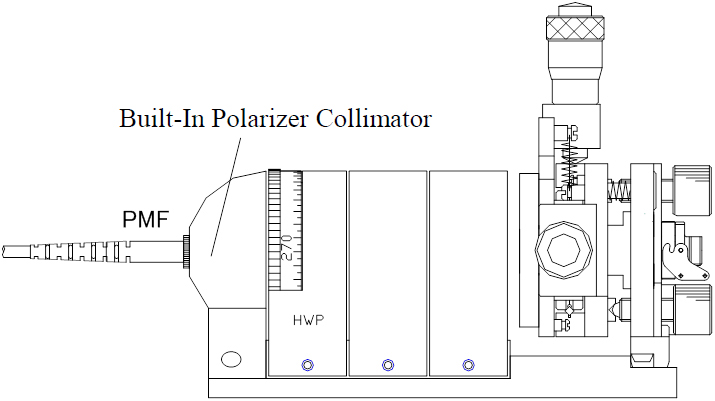

Positioner-Equipped Polarization Controller 2 (Rotating Polarization Plane
Type)
Features
- Used for direct excitation of linearly polarized light to an arbitrary fiber in an arbitrary direction
- Adjustment is needed in the case of fiber attachment to an adapter part.
- Applicable adapters: SC FC MU and LC
- No tools are needed to exchange SC and FC types.
|
|
(Click To Enlarge) |
|
|
Small Polarization Controller
Features
- Small-sized and integrated with a bulk-type wave plate
for embedded use
- 2-Stage (Q-H or Q-H + Polarizer-Equipped PMF*)
* Polarizers are fixed, aligning with the polarization-maintaining axes
of fibers.
- 3-Stage (P-Q-H or Q-H-Q)
- Φ0.25 bare fibers and Φ0.9 fibers are supported.
|
|
(Click To Enlarge) |
|
|
